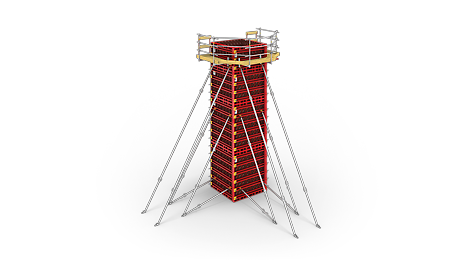

VARIOKIT Speed Column VSC is the solution for high quality concrete results in less time.

VARIOKIT Speed Column VSC

Our VARIOKIT Speed Column (VSC) stands out for delivering high-quality concrete finishes at exceptional concreting speeds. This innovative solution enables efficient column construction across a wide range of applications – from underground parking structures and bridge piers to high-rise buildings.

The VSC Speed Column solution is easy and fast to handle, allows for high concreting speed and results in high concrete finish. The panels can safely absorb a fresh concrete pressure of up to 90 kN/m² without anchoring and with a column cross-section of up to 2.25 m x 2.25 m, enabling fast concreting operations.

  • High speed

    High fresh concrete pressure is no issue for VSC, which enables fast
    concreting speeds without any anchoring.

  • First-class result

    The joint created during the concreting process is very narrow, resulting in an extremely smooth concrete surface. What’s more, there is no risk of frame impressions thanks to the wooden formlining used.

  • Safe concreting

    Additional PREMO Pressure Sensors can be used to optimise the concreting speed so that high columns are concreted safely.

SYSTEM

Product details

Learn more about the characteristics of our column solution.

  • High quality concrete finish
    High quality concrete results

    An anchorless application and narrow joints result in a high-quality concrete finish.

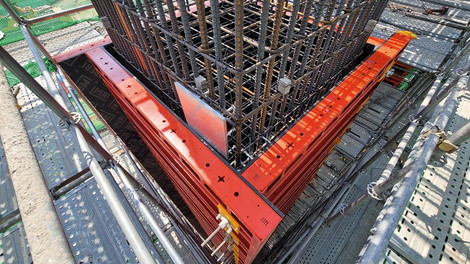

  • VSC System in use
    High concreting speed and high concrete pressure

    The panels can safely absorb a fresh concrete pressure of up to 90 kN/m² without anchoring and with a column cross-section of up to 2.25 m x 2.25 m, enabling fast concreting operations.

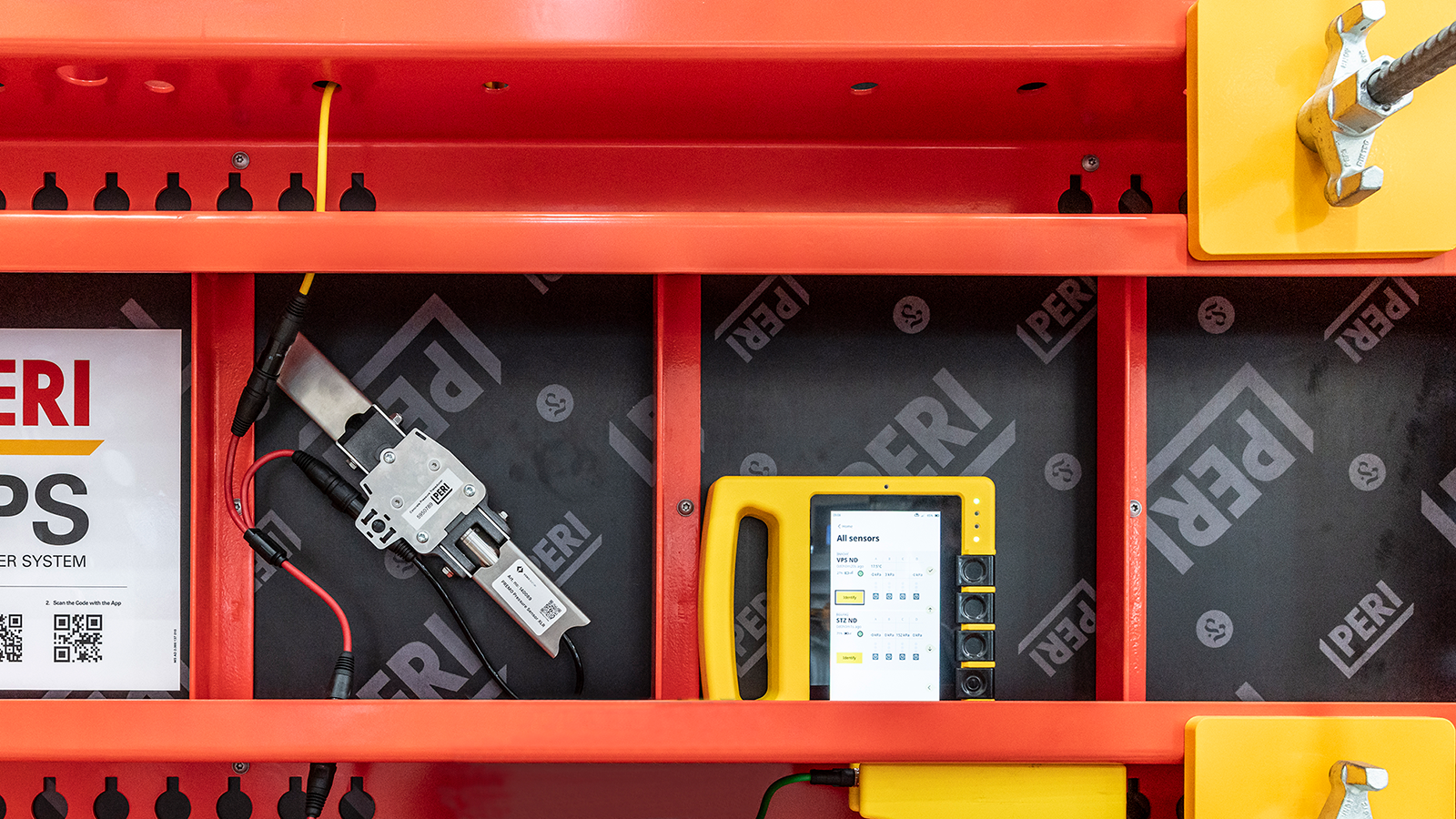

  • PREMO Pressure Sensore placed on the VSC System.
    Sensor-based concrete pressure monitoring

    VSC is compatible with PREMO Pressure Sensors which allow optimising the concreting speed so that high columns can be concreted safely.

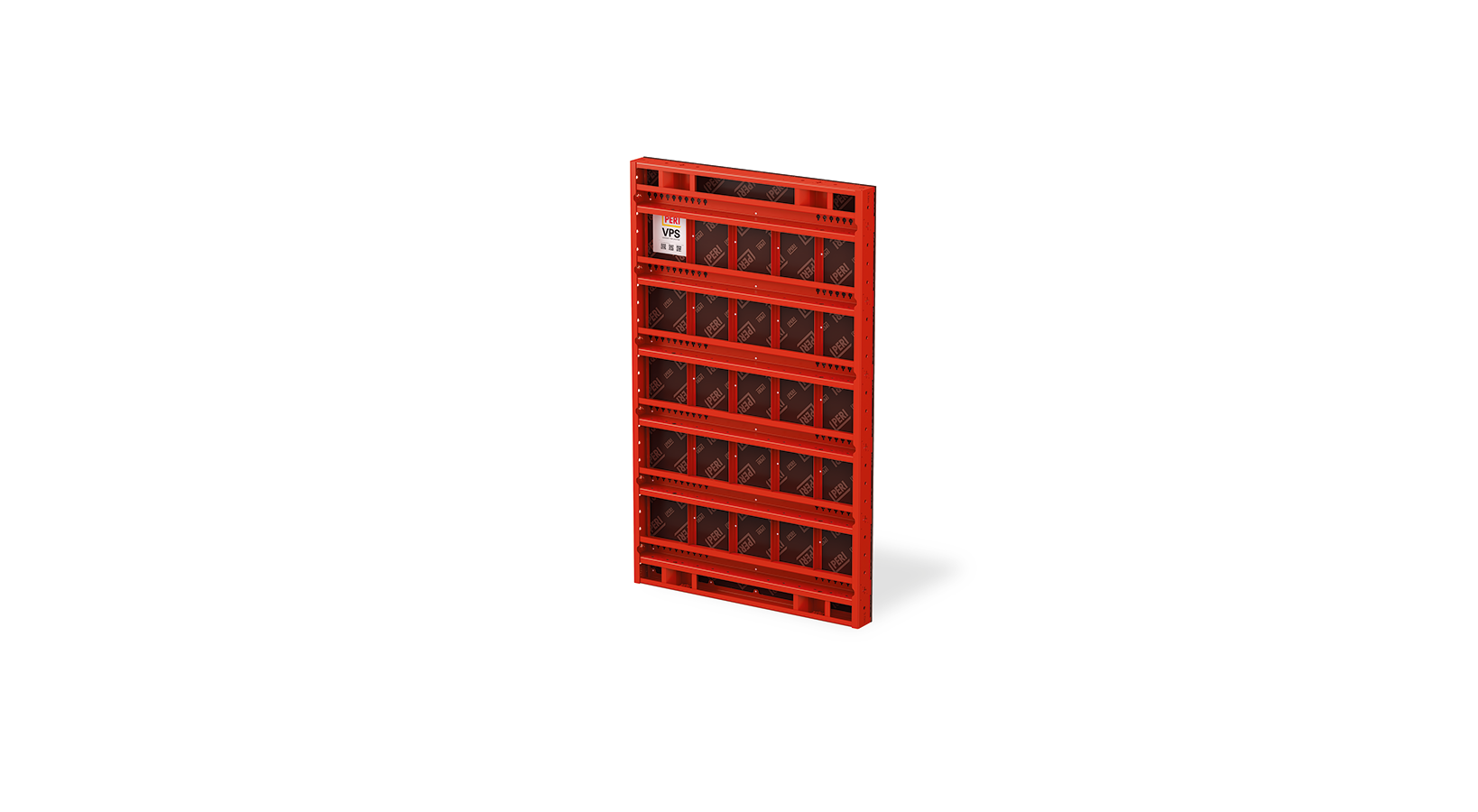

  • Choose between two different types of panels: the VPS Standard Panel und the Multi Panel.
    Standard Panel

    VSC offers a choice between the well-established VPS Standard Panel (red) and the particularly versatile Multi Panel (yellow). Both panels can be used in a variety of ways, regardless of whether metric or imperial dimensions are used.

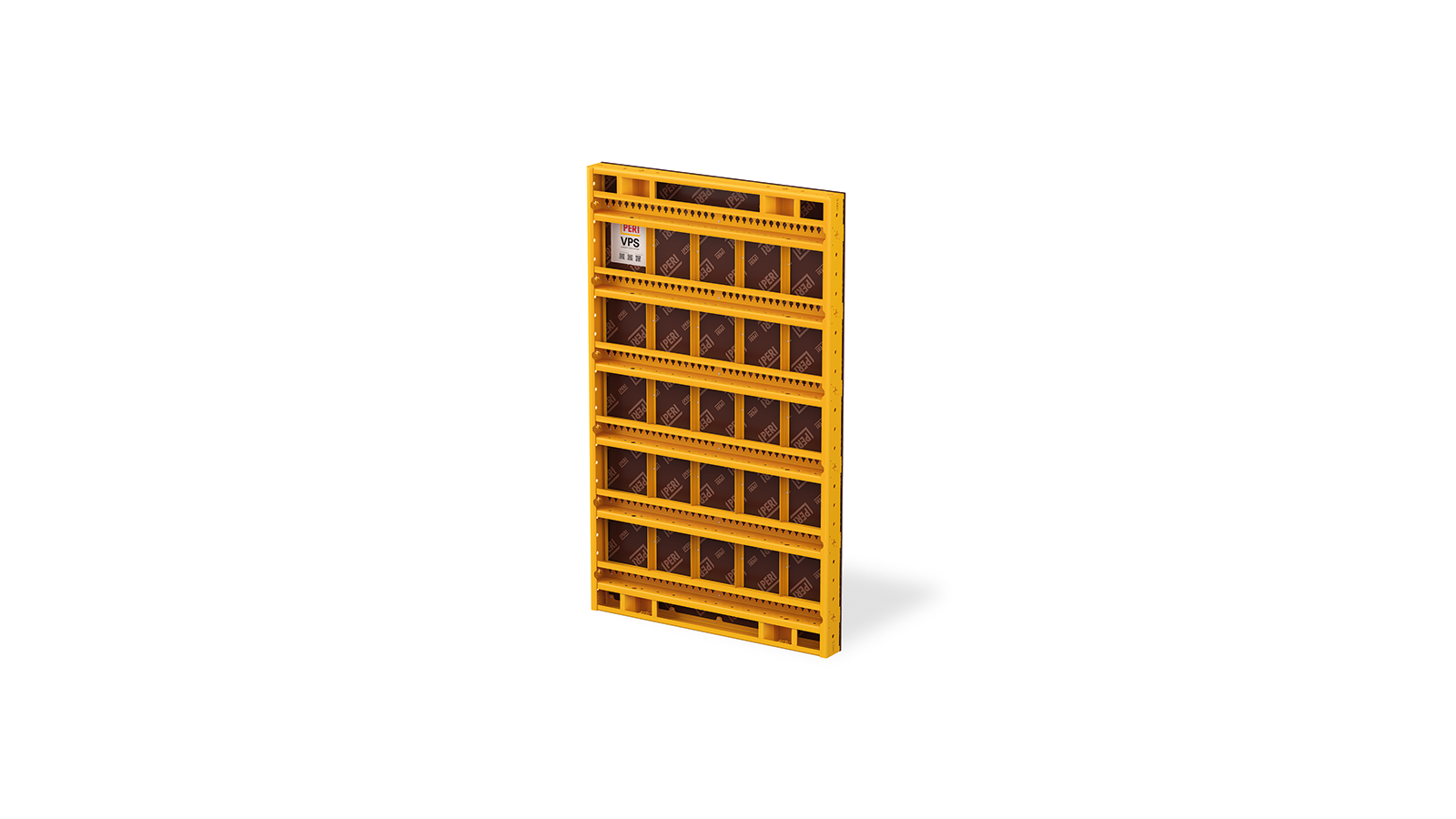

  • VPS Multi Panel l in widths of 2.13 m and 2.44 m for a more flexible panel configuration
    Multi Panel

    For the greatest possible versatility, PERI provides the Multi Panelin widths of 1.83 m (6 ft), 2.13 m (7 ft), and 2.44 m (8 ft). This facilitates flexible panel configurations up to the centre of the panel, irrespective of the unit of measurement used.

At a glance

Your advantages

  • Anchorless application, rapid concreting and high-quality results
  • Quick assembly process using X-Bolts
  • Versatile panel configuration for variable crosssections of rectangular columns
  • Optimised concreting process with the aid of externally installed concrete pressure sensors which are available as an add-on solution
  • Wide range of applications for large-format columns required in the construction of industrial structures, high-rise buildings, underground car parks, commercial buildings and bridges.

    Technical details

    Technical specifications
    Area/Support
    Column Formwork
    Fresh concrete pressure
    90 kN/m²
    Material
    Steel
    Formlining
    Plywood
    Technical specifications
    Area/Support
    Column Formwork
    Fresh concrete pressure
    90 kN/m²
    Material
    Steel
    Formlining
    Plywood
    System accessory
    Tie technology
    No ties up to 2.25 m x 2.25 m
    Safety
    Compatible with PERI UP
    System accessory
    Tie technology
    No ties up to 2.25 m x 2.25 m
    Safety
    Compatible with PERI UP
    Digital solutions
    Apps and tools
    PREMO Pressure Sensors
    Digital solutions
    Apps and tools
    PREMO Pressure Sensors
    Show More
    Show Less
    VIDEO

    Have a closer look at VSC in our video

    • How does the VARIOKIT Speed Column VSC work?
      Watch and find out what VSC has to offer: learn more about the set up, its easy handling and the variable windmill configuration.

    Interested in VSC?

    Contact us now for more information. Our experts are looking forward to helping you.

    Downloads

    Save all benefits of VSC by downloading our information material.
