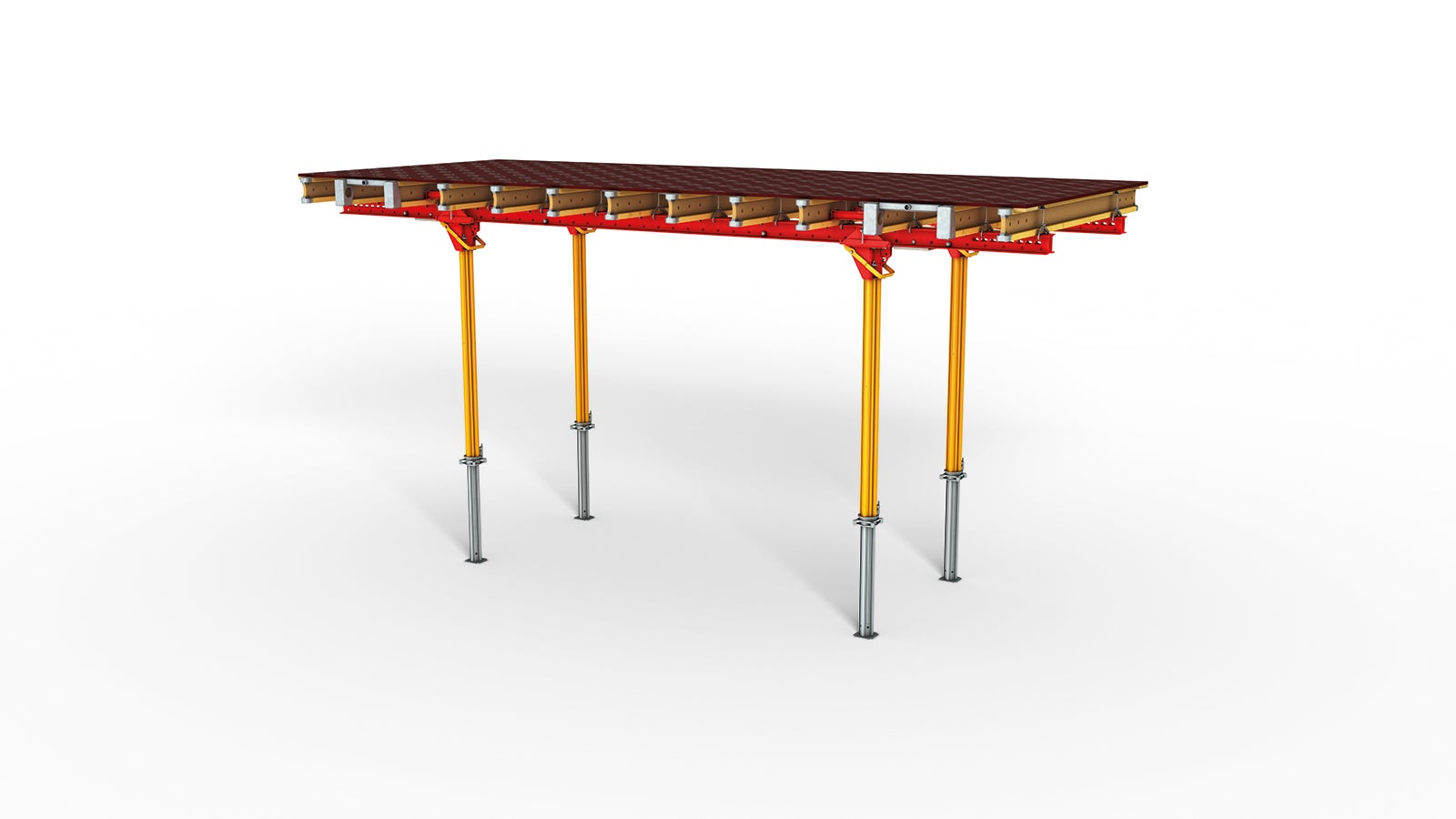

The slab table with steel walers for large formwork areas and heavy pre-fabricated parts

VARIODECK Steel Waler Slab Table

The slab table with steel walers for large formwork areas and heavy duty use

VARIODECK is the safe and ideal solution for slab edge areas when panel slab formwork is to be used for the inner area.

Slab areas of around 15m² and up to 50cm thick can be formed with the table. VARIODECK is quickly moved onto the next storey with a single crane lift or vertical access equipment. The swivel head enables the 4 props to be easily folded under the table to allow easy movement under beams.

Ready from the word go
through pre-assembled tables ready to use. During assembly only the lower part of the swivel head must be attached to the slab prop

High load-bearing capacity
through steel walers allowing large cantilevers or support of heavy prefabricated parts

Adaptable and flexible
by continuously moving the Table Swivel Head ± 15cm

Applications

The slab table with steel walers for large formwork areas and heavy duty use

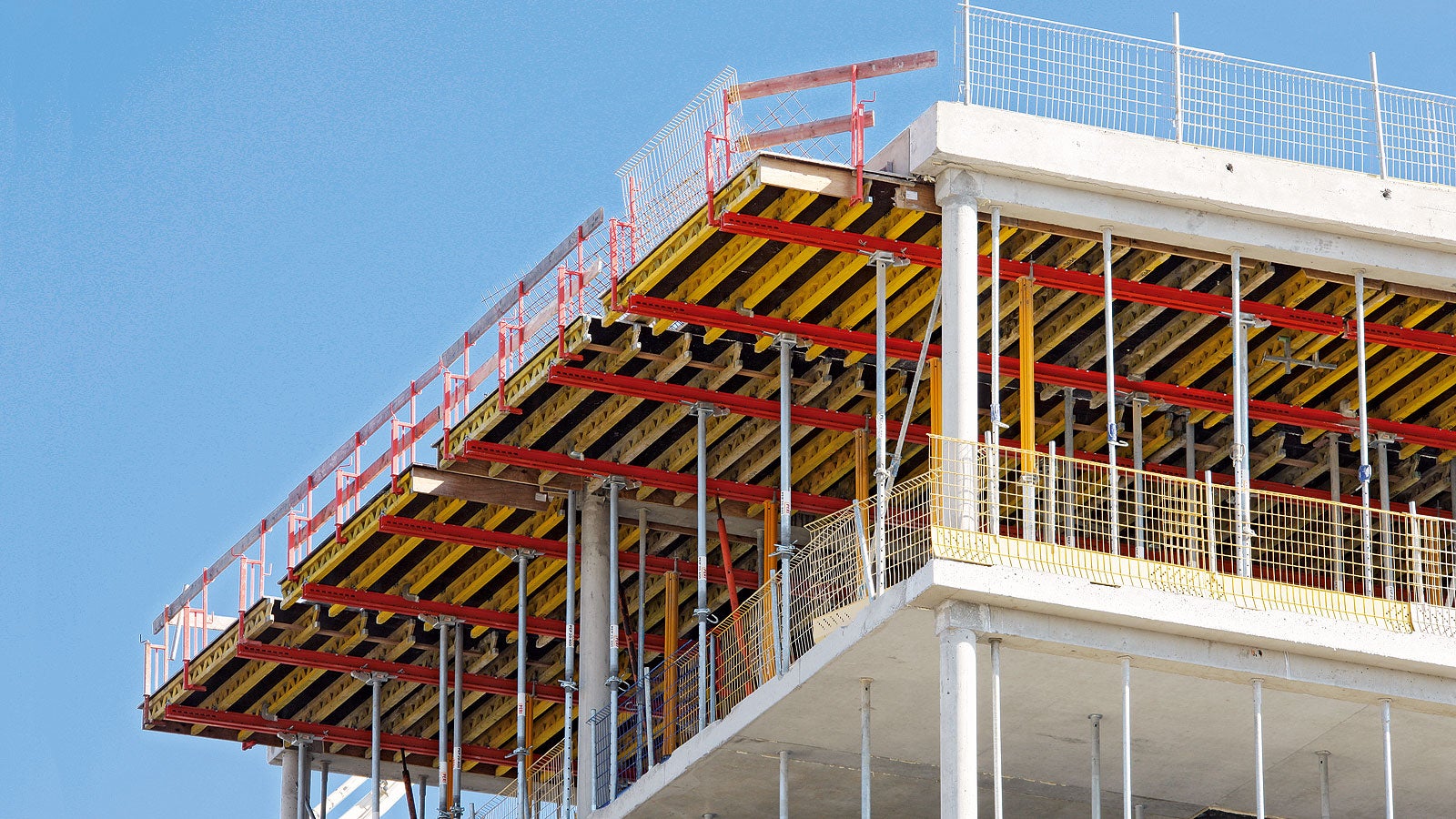

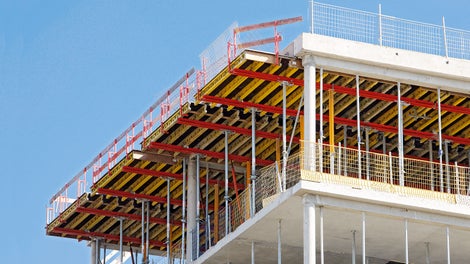

Slab tables with SRU steel walers serving as primary beams are the perfect slab edge system to complement system table formwork at the centre of the structure.

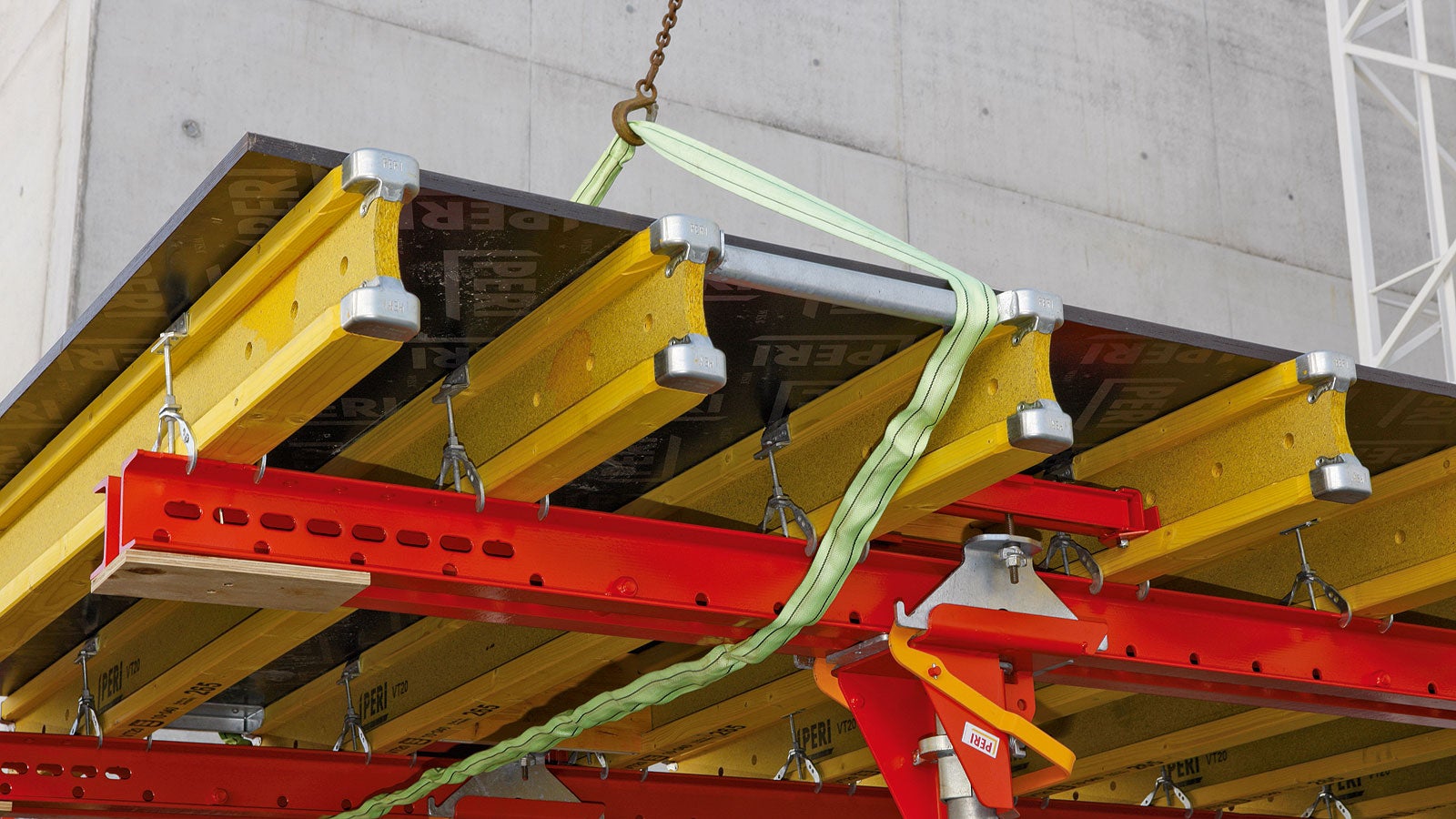

The corner protector avoids damage to the formlining when moving the tables with standard lifting gear at the jobsite. The steel cap and the rounded web make the PERI VT 20K girder extremely robust and long-lasting.

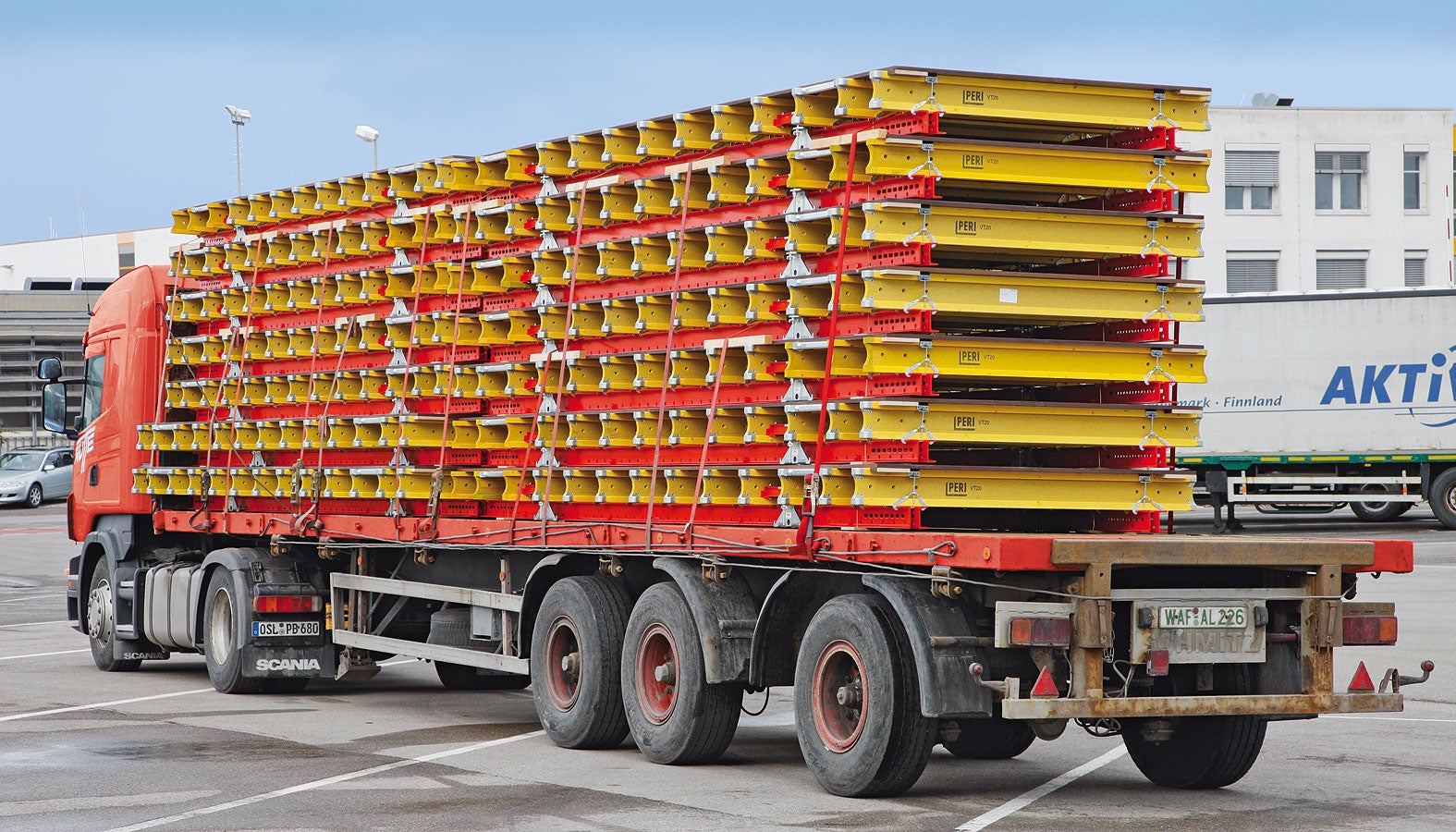

Due to the low construction height of only 36cm, 20% less transportation and storage capacity is necessary compared to slab tables with trusses made of type 20 wooden girders.

Arriving on site ready for use, the props can be attaced and tables hoisted in to place quickly and safely.

Product Data Sheet

Technical specifications

System type

Deck

Material

Wood and steel

Formlining

21 mm

Installation time

A table lift or transfer cart can be used for quick and easy stripping and moving around site

Slab thickness

Up to 50cm - maximum formwork area of table is 15.9m²

Other

The table swivel head increases the permissible support load and allows supports to be moved by 15cm in both directions without modification. The swivel head allows driving over parapets or under beams

Technical specifications

System type

Deck

Material

Wood and steel

Formlining

21 mm

Installation time

A table lift or transfer cart can be used for quick and easy stripping and moving around site

Slab thickness

Up to 50cm - maximum formwork area of table is 15.9m²

Other

The table swivel head increases the permissible support load and allows supports to be moved by 15cm in both directions without modification. The swivel head allows driving over parapets or under beams

System accessory

Safety

System-integrated security components

Transportation system

The tables can be moved from floor to floor using the PERI moving forks. Thanks to the compensation mechanism, they allow the fork to be positioned horizontally both when empty and when loaded. For horizontal movements, the PERI table transfer trolley or the PERI table lift can be used to move the tables.

System accessory

Safety

System-integrated security components

Transportation system

The tables can be moved from floor to floor using the PERI moving forks. Thanks to the compensation mechanism, they allow the fork to be positioned horizontally both when empty and when loaded. For horizontal movements, the PERI table transfer trolley or the PERI table lift can be used to move the tables.

Standard applications

Compatible with

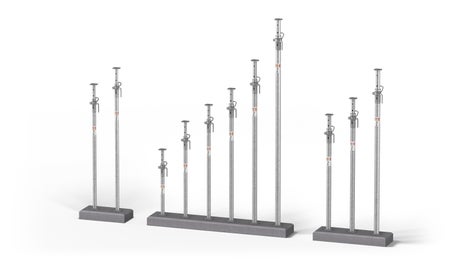

PEP Ergo construction props, MULTIROP aluminum props, table transfer trolleys

Standard applications

Compatible with

PEP Ergo construction props, MULTIROP aluminum props, table transfer trolleys
